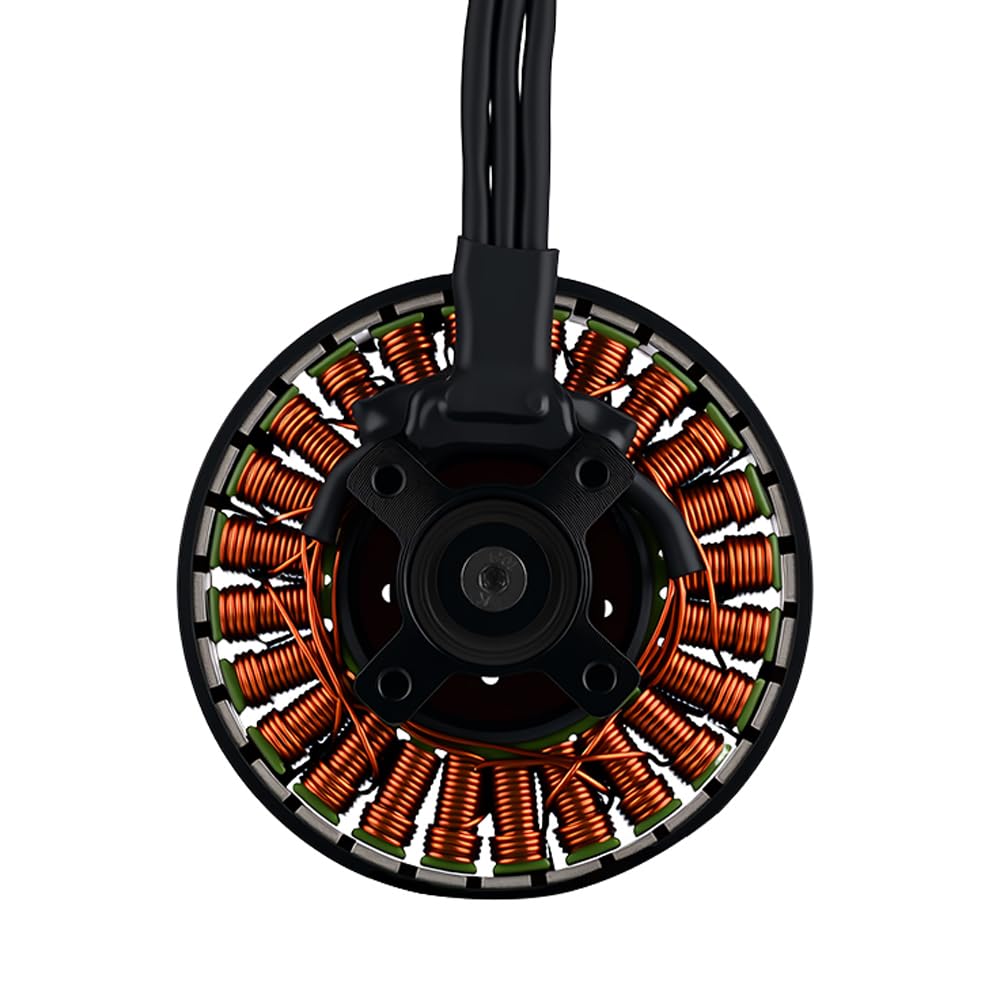

5008 370KV Brushless Motor,Outrunner Motor for 1760 Propeller, 1104W Max Continuous Power Drone Motor for Multirotor UAV, RC Quadcopter, Aerial Photography, Heavy Lift Drones

5008 KV370 Brushless Motor - Full Specifications (Text Version)Motor Diameter: 55.6+/-0.1 mmMotor Length (Excluding Shaft): 27+/-0.3 mmNo. of Slots / Poles: 24N28PMotor KV: 370+/-5% RPM/VFree-Load Current: 1.5A Max (@20V)Phase to Phase Resistance: 51+/-8% mΩ (at 25℃)Max Continuous Current/Power: 46A / 1104W (@24V)Temperature at Max Continuous Current: 85℃Max Current/Power: 51A / 1224W (@24V, 15s Max)Weight: 131+/-5 gRecommended Lipo Cells: 6SRecommended ESC: 6S/80ARecommended Propeller: 1760Maximum Operating Temperature of the Magnet: 150℃ (Recommended Max 120℃)Motor Torque Constant (Kt): 294.15 g.cm/AMotor Constant (Cn): 0.24 rpm/g.cm

• 1. High-Torque 370KV Brushless Motor for Heavy-Lift Drones This 5008 370KV brushless motor features a 24N28P high-torque slot-pole configuration, delivering powerful, stable output for heavy-lift multirotor drones. With a max continuous power of 1104W and peak power of 1224W , it provides exceptional thrust for long-duration aerial photography, cargo transport, and industrial UAV applications.
• 2. Premium Build with Superior Heat Dissipation & Durability Crafted with high-quality magnetic steel, the motor boasts a maximum magnet operating temperature of 150℃ and a phase-to-phase resistance of 51mΩ, ensuring efficient heat dissipation and long service life. The ultra-low no-load current minimizes power waste, extending flight time while maintaining reliable performance even in heavy-load scenarios.
• 3. Wide Compatibility for 6S LiPo & 1760 Propellers Designed exclusively for 6S LiPo batteries and recommended to pair with a 6S/80A ESC, this outrunner motor is perfectly matched with 1760 propellers. It is universally compatible with most multirotor drones, RC quadcopters, hexacopters, and industrial UAVs, meeting the needs of both professional pilots and hobbyists.
• 4. Optimized Design for Maximum Flight Efficiency Weighing only 131g with a compact 55.6mm outer diameter, this motor balances high torque with lightweight design, maximizing thrust-to-weight ratio and flight efficiency. The precise 294.15 g.cm/A torque constant and 0.24 rpm/g.cm motor constant ensure ultra-responsive control and stable hovering, even in windy conditions.
• 5. Strict Quality Control & Easy Installation Each motor undergoes rigorous factory testing to ensure consistent performance and reliability. With standard mounting specifications, it is easy to install and replace on most drone frames. Backed by professional after-sales support, we guarantee a satisfying purchase experience for all UAV enthusiasts.
